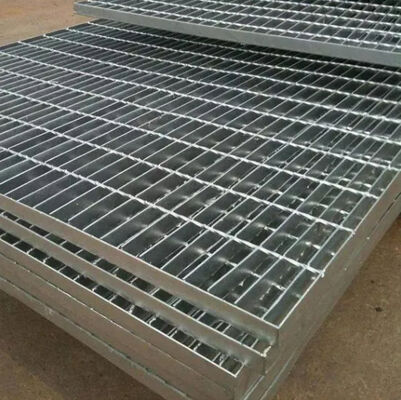

Steel grating is manufactured by welding or pressure-locking bearing bars and cross bars into a strong and durable grid structure. It provides excellent load-bearing capacity, drainage, ventilation, and slip resistance, making it an ideal solution for industrial flooring and structural applications.
Our products are available in hot-dip galvanized, painted, or stainless steel finishes and can be customized to meet various project requirements.
| Item | Standard Specification |
|---|---|
| Material | Carbon Steel (Q235/Q355) or Stainless Steel |
| Bearing Bar Height | 20 mm, 25 mm, 30 mm, 40 mm, 50 mm |
| Bearing Bar Thickness | 3 mm, 4 mm, 5 mm |
| Bearing Bar Pitch | 30 mm / 40 mm |
| Cross Bar Pitch | 50 mm / 100 mm |
| Surface Treatment | Hot-Dip Galvanized, Painted, Untreated |
| Manufacturing Method | Welded or Pressure-Locked |
| Standard Panel Size | Customized |
| Finish | Plain or Serrated |
Thickness varies from 25mm to 50mm or more, depending on load requirements.
Bearing bars carry the load; cross bars hold the bearing bars in place.
Yes, with proper design, steel grating can support industrial equipment.
It can be mounted on support frames, welded, bolted, or anchored depending on the structure.
Yes, using cutting tools suitable for steel, such as angle grinders or plasma cutters.
Welded grating has bearing and cross bars welded; pressed grating uses pressure-locked joints.
Minimal maintenance is needed; periodic cleaning and inspection are recommended.
