Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways

Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways
Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways
Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways

큰 이미지 :  Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways

제품 상세 정보:
원래 장소: 허난
브랜드 이름: GNEE
인증: SGS
결제 및 배송 조건:
최소 주문 수량: 협상
가격: negotiable
포장 세부 사항: 표준 해상 가치 패키지
공급 능력: 달 당 300000 평방 미터/평방 미터
접촉

Hot Dip Galvanized Serrated Style Steel Grating with Customizable Sizes for Industrial Walkways

설명

Galvanized Driveway Walkway Metal Bar Corten Steel Grating Floor
Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.
Hot DIP galvanized metal grating has three kinds of steel gratings: Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers. We can design and manufacture standard steel grating and customized shapes per client's requirements.

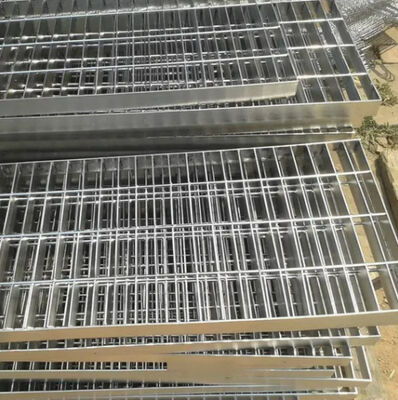

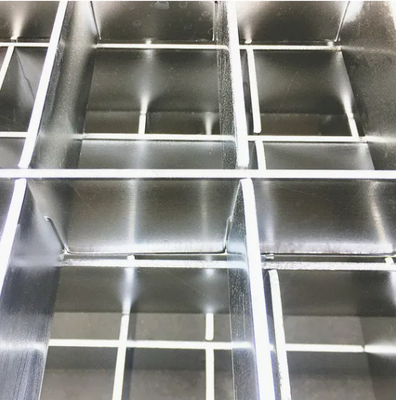

Steel grating product illustration showing various types and applications
Steel Grating Specifications
Materials: mild steel, stainless steel 304 or 316
Surface treatment: galvanizing, bitumen dipped, painted, untreated
Top surface: plain, flattened, raised
Steel grating is ideal for use as mezzanine decking since it supports the same loads as comparable solid flooring. Its cost-saving openness maximizes the circulation of air, light, heat, water and sound, while promoting cleanliness. Where insurance codes permit, additional sprinklers can often be eliminated. Standard panels are available in widths of 2', 3' or 4'.
S.No. Grating Specification (Standard Panel)
Load Bar Type Serrated
Cross Bar Size 6mm twisted Square
Size 6m x 0.905m
Finish Hot Dip Galvanized
Pitch Size (in mm) 41 x 100
1 Load Bar Size: 25 x 3mm
2 Load Bar Size: 25 x 4mm
3 Load Bar Size: 30 x 4mm
4 Load Bar Size: 38 x 4mm
5 Load Bar Size: 50 x 4mm
6 Clamps for G I Grating
Grating manufactured as per BS4592-1: 2006. Raw material confirms to BS EN 10025 S275JR or equivalent. Hot Dip Galvanizing confirms to EN ISO 1461/ASTM A123.
Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.
Manufacturing Process
We are a China Origin Factory of Bar Grating with a wide selection of quality guaranteed trench drain grates and steel grating products. If you have any questions, please feel free to contact us.
Applications
Steel gratings are known for their high strength and durability, and play a role in many fields:
  • Used for bridge guardrails and drainage ditch covers in municipal engineering
  • Used as factory platforms and petrochemical plant equipment supports in industrial facilities
  • Suitable for stair treads and light wells in architectural decoration
Steel grating is widely used in industrial platforms, stair treads and other scenes to meet the needs of load-bearing, anti-slip, drainage, etc., and is both functional and economical.

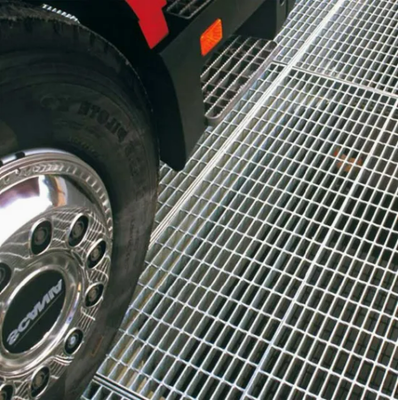

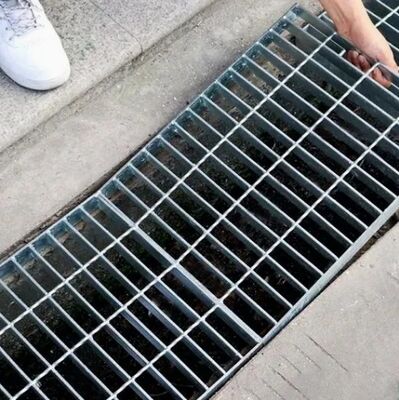

Steel grating installation examples in various industrial applications
Frequently Asked Questions
What is the difference between welded and pressed steel grating?
Welded grating has bearing and cross bars welded; pressed grating uses pressure-locked joints.
Is maintenance required for steel grating?
Minimal maintenance is needed; periodic cleaning and inspection are recommended.
Can steel grating resist chemicals?
Stainless steel or coated grating offers resistance to many chemicals.
Is steel grating recyclable?
Yes, steel grating is 100% recyclable and environmentally friendly.
How is steel grating priced?
Pricing depends on material, panel size, thickness, and finish.
Can steel grating be used in corrosive environments?
Yes, galvanized or stainless steel grating is ideal for corrosive conditions.
