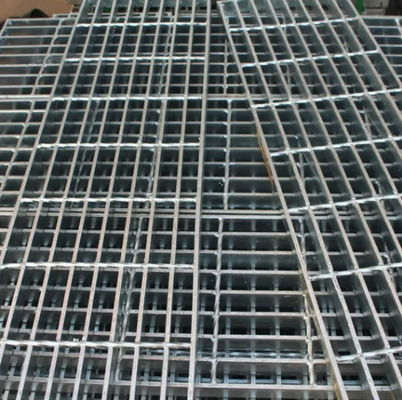

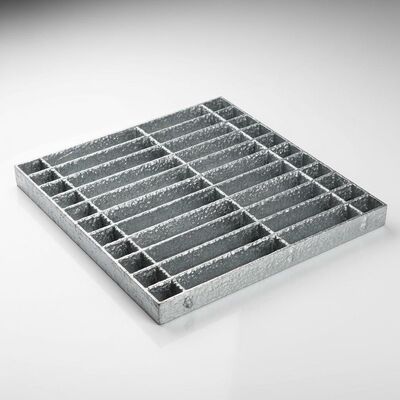

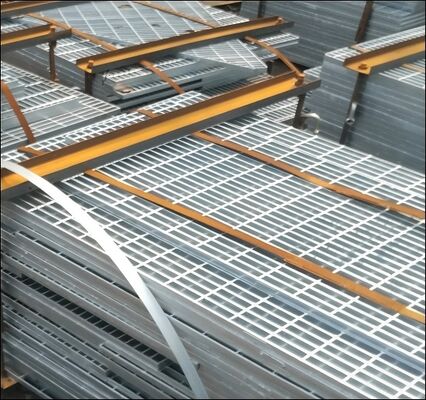

Hot DIP galvanized steel grating is available in three main styles: Plain Style Steel Grating, Serrated Style Steel Grating, and I Bar Type Steel Grating. These versatile products are widely used in steel structure platforms, stair treads, sidewalks, drainages, and well covers.
We offer both standard steel grating designs and custom manufacturing services to meet specific client requirements and applications.
| Product Name | Steel Grating |
|---|---|
| Material | Low Carbon Steel |
| Surface Treatment | Black, Hot dip galvanized, Painted, Powder coated |
| Type | Plain/ I/ Serrated style |
| Height of Bearing Bar | 1'', 1 1/4'', 1 1/2'', 2'' (20, 25, 30, 32, 40, or 50mm) etc. |
| Thickness of Bearing Bar | 1/8'', 3/16'', 1/4'' (3, 4, or 5mm) etc |
| Pitch of Bearing Bar | 1''-4'' (25, 30, 35, 40, 50, or 60mm) |
| Pitch of Cross Bar | 2''-4'' (30, 40, 50, or 100mm) |
| Diameter of Cross Bar | 5x5, 6x6, or 8x8mm |
| Application | Industrial Platform, Walkway |
