제품 상세 정보:
|

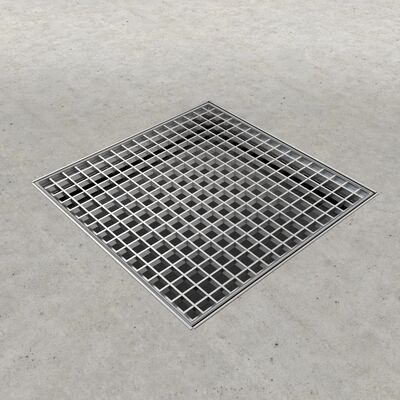

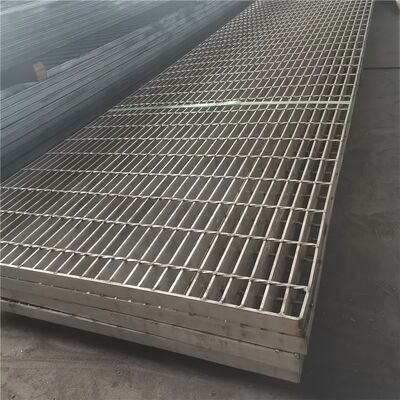

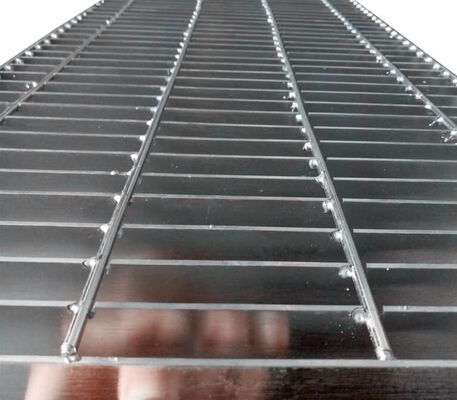

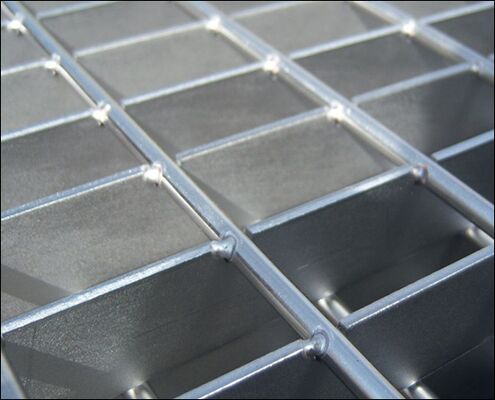

| 강조하다: | Pressure Welded Stainless Steel Grating,Slip-Resistant Surface Steel Bar Grating,Customizable Sizes Metal Grating |
||
|---|---|---|---|
| Product Name | steel grating, walkway steel grating, building materials steel bar grating, galvanized steel grid |
| Material Standard | Stainless steel, Low carbon steel, etc. |
| Bearing Bar (width*thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…100x10mm etc; I shape bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc |
| Surface Treatment | Untreated (black), hot-dipped galvanized, powder coated, painting or as per customer requirements |
| Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
| Packing | Packed on pallets. Other special packaging available according to customer requirements |
