제품 상세 정보:
|
| 강조하다: | High Strength Steel Grating Drain Cover,Natural Surface Treatment Drainage Grating,Factory Directly Supplying Stormwater Drain Cover |
||
|---|---|---|---|

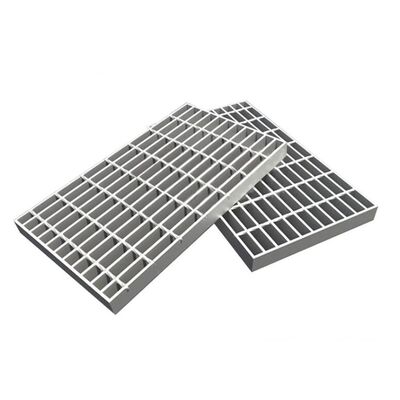

Our welded steel bar grating provides exceptional strength and durability for load-bearing applications, ideal for pedestrian walkways and light vehicle traffic areas. Available in multiple configurations to meet various load requirements and safety standards.
| Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304, Mild steel & Low carbon steel |
|---|---|
| Bearing Bar (width x thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4.5, 30x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" |
| Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41, 41.25, 60, 80mm US Standard: 19-W-4, 15-W-4, 11-W-4, 19-W-2, 15-W-2 |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2"&4" |
| Surface Treatment | Untreated (black), hot dipped galvanized, powder coated, electroplate, painting or custom |
| Grating Types | Plain/Smooth, Serrated/teeth, I bar, serrated I bar |
| Packaging Options |
LCL: Plastic film + wooden pallets FCL: Nude packing Custom packaging available |
