| 강조하다: | 6000 Series Aluminum Pressure Locked Steel Grating,300 Series Stainless Steels Press Lock Grating,20×3 Dovetail Steel Grating |
||
|---|---|---|---|

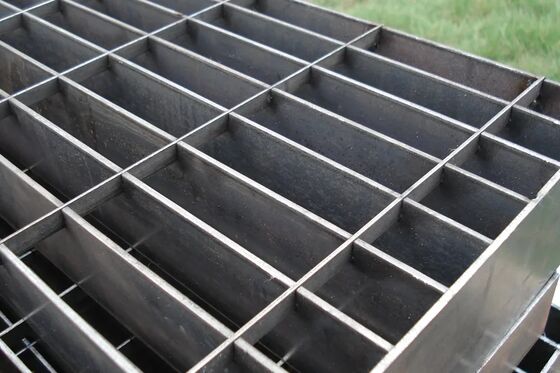

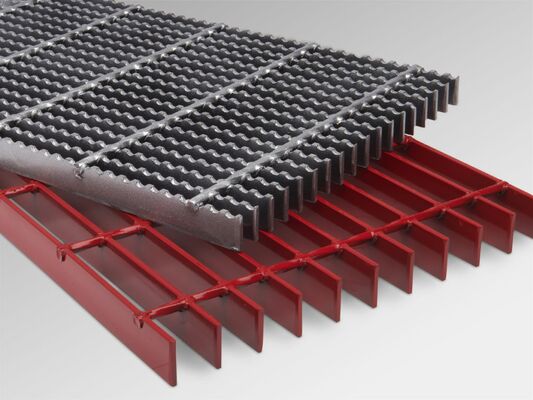

Pressure Locked Grating is the workhorse of the industrial flooring market, offering exceptional strength-to-weight ratio and durability. This versatile metal bar grating can be easily fabricated to nearly any configuration, making it ideal for various industrial applications.
The high percentage of open area makes bar grating nearly maintenance-free, and all products are fully recyclable. Manufactured by assembling equally spaced metal bars to connecting cross members, bar grating is available in three popular materials:
An economical design ideal for most industrial applications. Manufactured by welding the bearing bar/cross bar intersection, typically with automated forge welding equipment. Available in carbon steel and stainless steel.
Assembled by inserting pre-punched bearing and cross bars into an "eggcrate" configuration and deforming the cross bars under intense hydraulic pressure.
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load (width×thickness) |
|---|---|---|
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load (width×thickness) |
|---|---|---|
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
