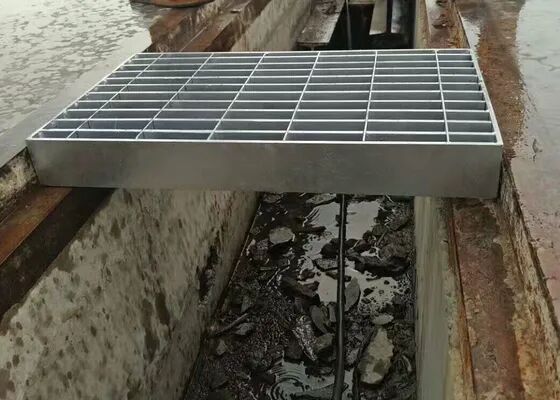

Heavy Duty 19W4 Steel Bar Grating for Walkways and Platforms
Our high-strength steel bar grating is constructed from durable carbon steel, aluminum steel, or stainless steel. Available in welded, press-locked, swage-locked, and riveted varieties with smooth or serrated surface options, these gratings are ideal for stair treads, walkways, platforms, floors, covers, and heavy-duty construction applications.
Surface Treatment Options
Carbon Steel Finishes:
  • Black/Bare Steel: Most economical option with minimal corrosion resistance
  • Painted Coat: Moderate rust protection with customizable colors
  • Electro-galvanized: Light zinc coating suitable for dry environments
  • Hot-dip galvanized: Premium corrosion protection compliant with ASTM A123/GB/T 13912-2002
Stainless Steel Finishes:
  • Pickling Passivation: Creates uniform silver-white matte surface
  • Electrolytic Polishing: Produces bright reflective finish
Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications 0
Installation Accessories
Our durable steel grating accessories provide secure installation with high strength and rust-proof performance:
  • Saddle clips: Removable bent-clip fasteners
  • G-clips: Friction fasteners for multiple metal types
  • Grate fast clips: Top-side installation without drilling
  • Weld lugs: For removable grating applications
  • Z-clip: Versatile anchor for riveted grating
  • R-clip: Customizable formed metal fastener
  • Countersunk land: Aluminum grating exclusive
  • Anchor block: Permanent or removable panel fastening
Product Specifications
Material: Carbon Steel, Stainless Steel, Aluminum
Surface Treatment: Hot-dip galvanized, Spray painting, Polished, Powder coated
Bearing Bar Type: Plain (Flat) bar, Serrated bar, I-bar
Bearing Bar Pitch (mm) Cross Bar Pitch (mm) Bearing Bar Size
30 100 WSG_203/253/323/403/205/325/405/455/505/555_30_100
30 50 WSG_203/253/323/403/205/325/405/455/505/555_30_50
40 100 WSG_203/253/323/403/205/325/405/455/505/555_40_100
40 50 WSG_203/253/323/403/205/325/405/455/505/555_40_50
60 50 WSG_203/253/323/403/205/325/405/455/505/555_60_50
Contact us for custom dimensions or specific specifications.
