| 강조하다: | hot-dip galvanized steel grating,compound steel bar grating platforms,steel grating walkways trench covers |
||
|---|---|---|---|

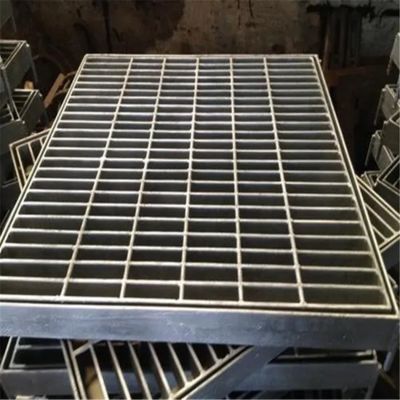

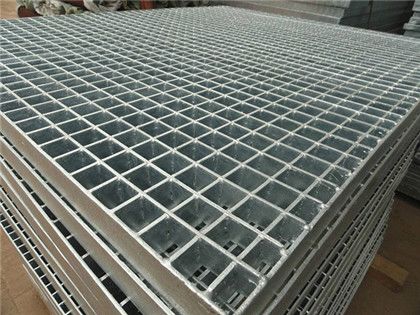

Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings.
With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.
When ordering, please specify:
| Type of Bearing Bars | Size of Bearing Bars (mm, Depth x Thickness) | Size of Cross Bars (mm) | Pitch of Rectangular Holes (mm) |
|---|---|---|---|
| Rectangular Flat Bars | 25 × 2 | 8 x 8 | 30x100, 40x100, 60x100 |
| 25 × 3 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 25.4 × 4.76 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 30 × 5 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 32 × 3 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 32 × 5 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 38 × 3 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 38 × 5 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 40 × 3 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 40 × 4 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 40 × 5 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 40 × 12 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 45 × 3 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 45 × 5 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 50 × 3 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 50 × 4.5 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 55 × 3 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 60 × 3 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 60 × 12 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 65 x 5 | 8 x 8 | 30x100, 40x100, 60x100 | |
| I-Shaped Steel Bars | 26.8 × 6.25 | 8 x 8 | 30x100, 40x100, 60x100 |
| 25.4 × 6.35 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 65 × 6.35 | 8 x 8 | 30x100, 40x100, 60x100 | |
| 50.8 × 6.35 | 8 x 8 | 30x100, 40x100, 60x100 | |
| T-Shaped Steel Bars | 32 x 60 | 8 x 8 | 30x100, 40x100, 60x100 |
| 28 x 52 | 8 x 8 | 30x100, 40x100, 60x100 |
