| 강조하다: | fiberglass reinforced plastic grating,FRP grating walkway flooring,GRP gratings for industrial flooring |
||
|---|---|---|---|

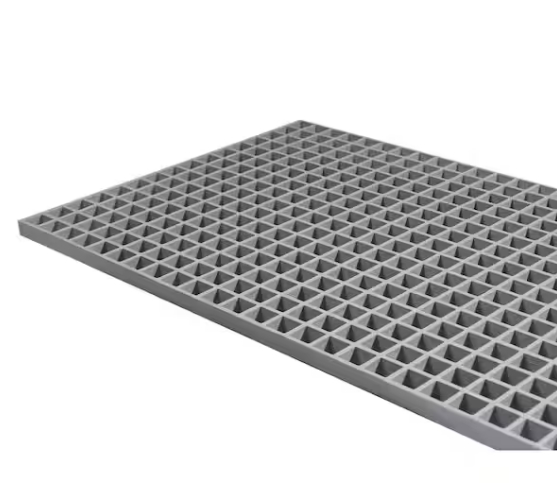

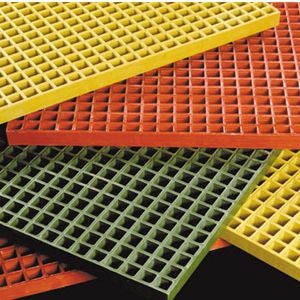

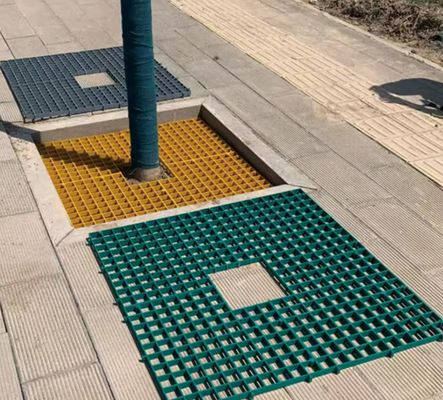

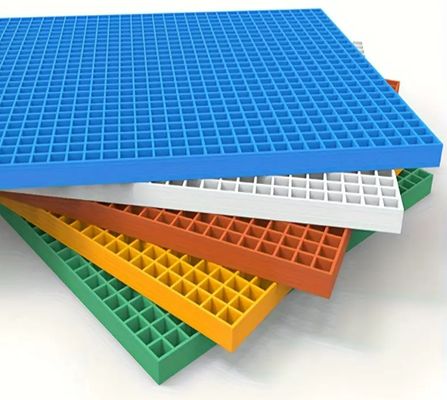

FRP/GRP Grating (Fiberglass Reinforced Plastic) is also known as glass-reinforced plastic grating or fiberglass grating. One of the main advantages FRP Grating has over steel is that FRP simply WILL NOT RUST. That's why you frequently see FRP used around saltwater for walkways, docks, and handrails.
Work with our fiberglass grating service to ensure your flooring, handrails, walls, and decks both indoors and out are fully protected against a wide range of uses and environments.
FRP Grating looks so much like steel, so you may have seen FRP at a marina and not even know it. The price for FRP Grating is also often lower than steel or aluminum prices required to provide the same protection because FRP can perform at a much lower weight requirement.
| Mesh size (mm) | Thickness (mm) | Bar thickness (Top/Bottom mm) | Panel size available (mm) | Weight (kg/m2) | Open Rate (%) |
|---|---|---|---|---|---|
| 38*38 | 13 | 6.0/5.0 | 1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010 | 6 | 78% |
| 38*38 | 14 | 6.0/5.0 | 1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010 | 6.5 | 78% |
| 38*38 | 20 | 6.0/5.0 | 1220*3660,1220*4000,915*3050 | 9.8 | 65% |
| 38*38 | 25 | 6.3/4.8,6.5/5.0 | 1220*3660,1220*4000,915*3050 | 12,12.3 | 68% |
| 38*38 | 30 | 6.5/5.0 | 1220*3660,1220*2440,915*3050 | 14.6 | 68% |
| 38*38 | 38 | 7.0/5.0 | 1220*3660,1220*2440,915*3050 | 21.5 | 68% |
| 38*38 | 50 | 8.0/6.0,11.0/9.0 | 1220*3660,1220*2440,915*3050 | 30,42 | 56% |
| 38*38 | 60 | 10.5/9.0 | 1220*3660,1220*4000,915*3050 | 50.4 | 54% |
| 38*38 | 70 | 11.5/9.0 | 1230*4010 | 58.8 | 49% |
| 40*40 | 25 | 5.0/3.8,6.0/4.0, 7.0/5.0 | 1220*3660,1220*4025,1000*4040 | 9.5,11.5,12.3 | 67% |
| 40*40 | 30 | 6.0/4.0,7.0/5.0 | 1220*3660,1220*4025,1000*4000 | 15,14.6 | 67% |
| 40*40 | 38 | 6.0/4.0,7.0/5.0 | 1220*3660,1000*4000,1220*4025,1220*2440 | 20,19.2 | 67% |
| 40*40 | 40 | 7.0/5.0 | 1220*3660,1000*4000,1220*4025,1220*2440 | 19.5 | 67% |
| 43*43 | 25 | 5.0/3.8 | 1220*4000,1220*4054,1220*3660, 1003*4054 | 9 | |
| 50*50 | 15 | 6.0/5.0 | 1220*3660,1220*2440,1220*4000 | 5.9 | 82% |
| 50*50 | 25 | 7.0/6.0 | 1220*3660,1220*2440,915*3050 | 11.5 | 80% |
| 50*50 | 40 | 6.8/5.0 | 1778*4531,1225*4531 | 18.2 | 78% |
| 50*50 | 50 | 8.0/6.0 | 1220*3660,1220*2440,915*3050 | 23 | 78% |
| 50*50 | 63 | 8.3/6.0 | 1220*3660,1220*2440,1220*4000, 915*3050 | 28.8 | 78% |
| 52*52 | 50 | 5.0/5.0 | 1220*4000 | 21 | |
| 79*79 | 23 | 6.5/5.0 | 405*3569 | 5.7 | 80% |
| 83*83 | 25 | 7.0/5.0 | 1007*4007,1007*3007 | 5.8 | 84% |
| 83*83 | 38 | 7.0/5.0 | 1007*4007,1007*3007 | 9.5 | 84% |
| 83*83 | 40 | 7.0/5.0 | 1007*4007,1007*3007 | 10.7 | 84% |
| SpanDeflection | KG/M² | Load limit |
|---|---|---|
| 450 | 0.559 | 3910 |
| 600 | 0.864 | 2924 |
| 900 | 2.896 | 1948 |
| 1200 | 5.715 | 1461 |
| SpanDeflection | KG/M² | Load limit |
|---|---|---|
| 300 | <0.254 | 9923.4 |
| 450 | 0.254 | 4827.6 |
| 600 | 0.508 | 4112.4 |
| 750 | 1.27 | 3173.7 |
| 900 | 1.778 | 2637.3 |
| SpanDeflection | KG/M² | Load limit |
|---|---|---|
| 300 | 0.279 | 17116 |
| 600 | 0.356 | 8718 |
| 900 | 0.864 | 5817 |
| 1200 | 2.261 | 3755 |
| SpanDeflection | KG/M² | Load limit |
|---|---|---|
| 300 | 0.279 | 21727 |
| 600 | 0.356 | 11713 |
| 900 | 0.508 | 7780 |
| 1200 | 0.914 | 5834 |
