제품 상세 정보:
|

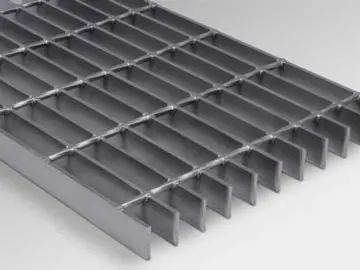

| 강조하다: | serrated steel grating bearing bar,stainless steel trench grate,1-1/4 x 1/4 steel grating |
||
|---|---|---|---|
THE POPULAR SPECIFICATIONS OF STEEL GRATING
The grating with a pitch of 30mm between bearing bars is the most widely used type in the industrial field. Among normal types, it has the strongest resistance to surface lash.
The grating with a pitch of 40mm between bearing bars is the most economical and lightest type. It is the best choice for you on occasions when the span is small.
The grating with a pitch of 60mm between the bearing bars and a pitch of 50mm between the cross bars is developed especially for the mining industry, it solved the problem of a mineral splash on the plate. So it is often appointed for use in processing works of the mining industry.
The grating with a pitch of 30mm between bearing bars and of 76mm between cross bars is the most popular type used at home and abroad, it is proper for many applications such as walkways, platforms, etc.
Stainless steel grating is regarded as industrial-grade bar grating, which is extremely strong, durable, and corrosive resistant for all load-bearing applications and is primarily used for pedestrian and light vehicle traffic.
It can provide durable grating solutions for corrosive resistance and minimum carbide precipitation are important considerations, typical applications include stairs and platforms for chemical production and storage, food processing, and water and wastewater treatment plant.
| Type | Description | Tensile Strength | Yield |
|---|---|---|---|
| 304 | Good corrosion resistance, high tensile strength, excellent for chemical processing, food industries, power plants, and wastewater treatment. Used in high-temperature applications | 75,000 psi (min.) | 30,000 psi (min.) |
| 316 | Better corrosion and pitting resistance than type 304, and good heat resistance, used in chemical, pulp, and paper processing, marine environments, textile equipment, and petroleum refining. | 75,000 psi (min.) | 30,000 psi (min.) |
| Metric Legend | Imperial Legend |
|---|---|
| U = Safe Uniform Load (kPa) C = Safe Concentrated Load (kN/meter of grating width) D = Deflection (mm) |
U = Safe Uniform Load (lbs./ft2) C = Safe Concentrated Load (lbs./foot of grating width) D = Deflection (inches) |
